The Active Denial System: What Is It And What Does It Do?

The active denial system is a non-lethal, directed-energy, counter-personnel weapon system owned by the US military. It consists of a gyrotron, which generates and focuses a high-energy millimeter-wave radio frequency beam (a type of electromagnetic radiation) onto a target to provide a very hot, skin surface-burning sensation.

I was recently watching a military film set during World War 2. It obviously featured a lot of weapons used on those battlefields, but one that specifically grabbed my attention was a ‘flame thrower’. As the name clearly signifies, it was a gun that spewed fire instead of bullets!

The flame throwers

Flame throwers were widely used by all participating countries during World War II.

Although it could also be (and was) used in a direct assault on an enemy, it was primarily used to destroy bunkers and clear out hostile areas by setting them ablaze.

Fast-forward seven decades and those flame throwers have virtually disappeared from the battlefield. They might have been effective back then, but today, they have been replaced by far more sophisticated, sturdier and impactful weaponry. One of those specialized types of weapons used to disrupt a crowd of insurgents without causing fatalities are non-lethal weapons.

Non-lethal weapons provide military and other armed forces with an additional set of tools to engage in complex but sensitive environments. One of the new technologies serving this purpose is the Active Denial System (ADS). It sounds like a concept from psychology, but it is actually a newfangled military technology! Before going into details of ADS and how it works, let’s first understand why it is needed.

The Need for ADS

A modern battlefield often poses a challenge for troops if they need to, for example, disperse a group of rebels in a harmless manner or with minimal injuries. The US military’s engagement in Afghanistan, Iraq, Somalia, etc. has often presented such challenging situations.

Many times, military troops have only a few minutes or even seconds to make the daunting decision of using lethal weapons on rebels. However, the ramifications of resorting to brute force to deal with dissenters can be tragic. A lethal action by military forces may end up taking the life of an innocent victim, and that person’s family members, friends, and relatives may then develop a prejudice against the military. Previously, they might have been ‘neutral’, but such fatalities would inflict an agonizing amount of mental trauma, enough that they might change their allegiance. Being filled with a desire for vengeance, they might join insurgents or collude with them. This would erupt in more skirmishes in the future.

This is where non-lethal weapons come to the rescue. They can disperse a crowd of protestors and make them retreat from the site. Tear gas, electric stun guns, and pepper spray are some of the most commonly used alternatives in such situations, but the problem is that they have a limited range of 50m or less. This is where ADS proves its worth. They not only significantly improve the operating range (up to 1000m), but inflict a transient but sharp burning sensation in the target. The discomfort is such that they would be forced to leave the area.

The Active Denial System (ADS)

The Active Denial System (ADS) is a directed-energy non-lethal weapon system designed and developed by the US military. The Air Force Research Laboratory (AFRL) at Kirtland Air Force Base in Albuquerque is where ADS technology was first developed.

ADS is also known as a heat ray or pain ray. It is primarily designed for perimeter security and crowd control.

ADS is currently a vehicle-mounted weapon, meaning that it can only be used from a designated vehicle. It is currently not portable, although developments are ongoing to make it portable in the near future. That’s why it is sometimes also referred to as the Vehicle-Mounted Active Denial System (V-MADS). It emits a man-sized beam of millimeter waves that produces a hot, burning sensation in the skin when it strikes a (human) target.

V-MADS

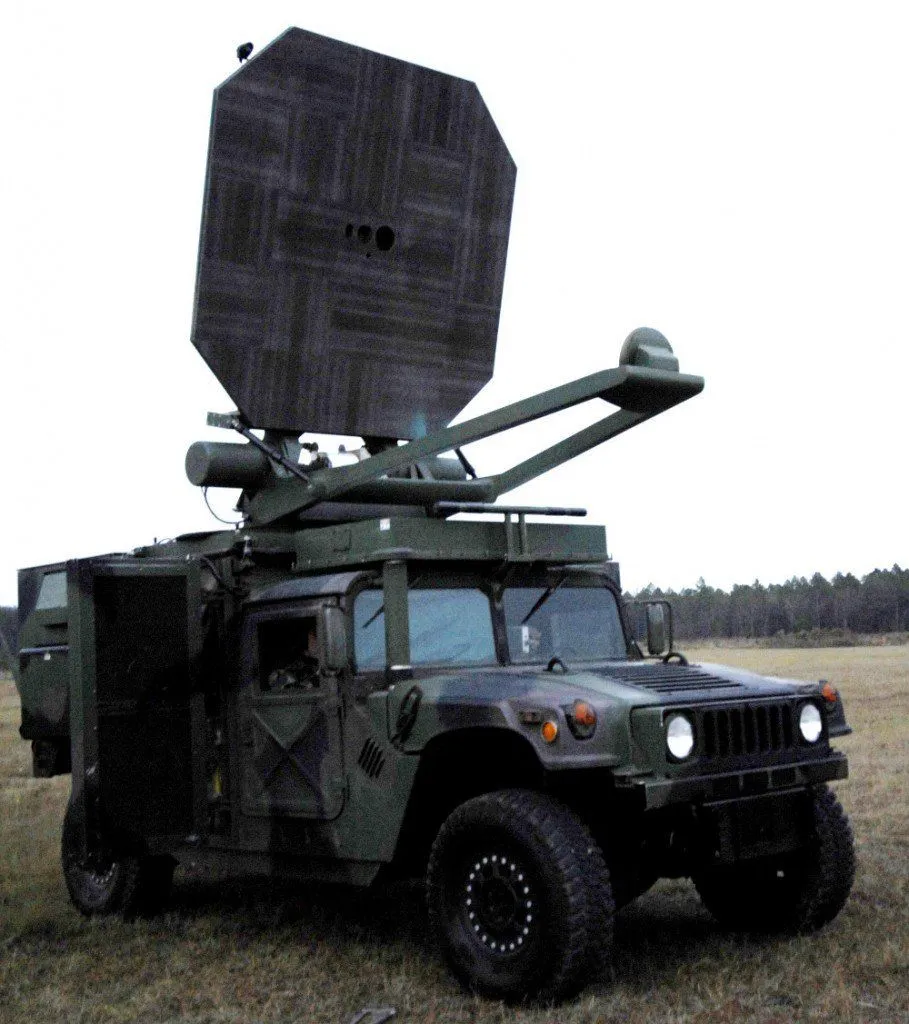

The V-MADS atop a Humvee (Photo Credit : Airman st Class Gina Chiaverotti / Air combat command)

Although the usage of millimeter wave as a non-lethal weapon is new, these waves are been studied by scientists since James Maxwell laid down the theory of electromagnetism in the late nineteenth century. Maxwell’s work opened the door to understanding the electromagnetic spectrum, which ranges from radio waves, microwaves, and millimeter waves to infrared, visible light, and X-rays.

How does the ADS work?

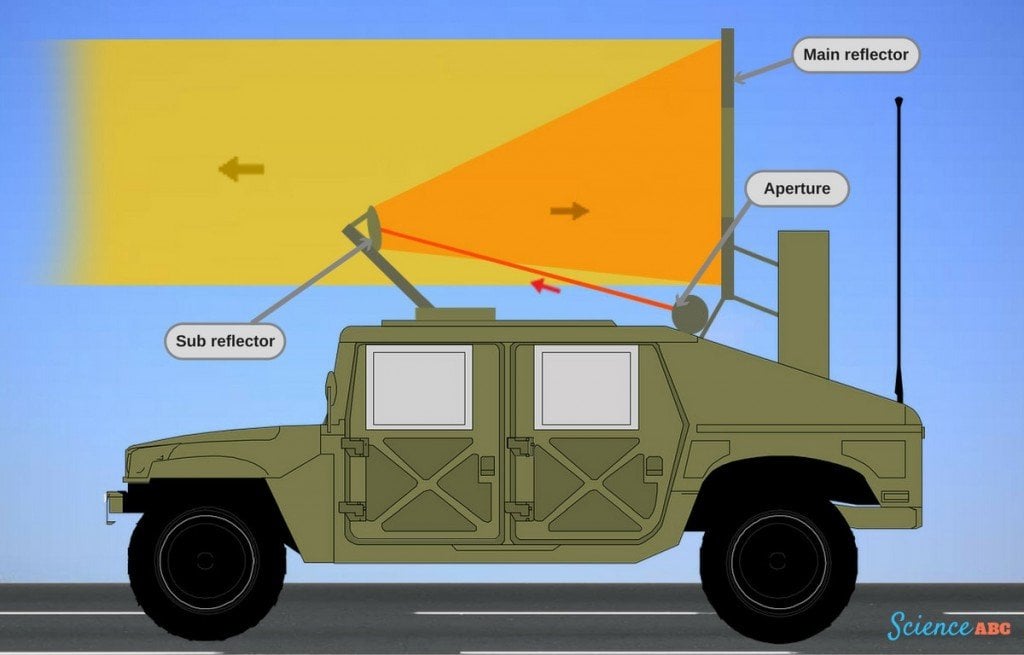

The working principle of the active denial system is similar to that of a microwave oven. Just as a microwave has a magnetron that emits microwaves and heats the food kept inside, the V-MADS system consists of a gyrotron that emits millimeter waves at a frequency of 95 GHz with the help of a reflector.

, The Active Denial System: What Is It And What Does It Do?, Science ABC, Science ABC

V-MADs has a video camera for day operations and an infrared camera for night operations, which allows the system operator inside the vehicle to direct these millimeter waves at a given target using a joystick.

These waves travel at the speed of light (since they’re part of the electromagnetic spectrum). When the focused high-energy beam strikes the target (i.e., human), it interacts with the tiny water molecules (or moisture) present on the surface of the skin and excites them. This interaction produces an unnerving, but non-lethal sensation of intense heat. This makes the person who is exposed very uneasy and uncomfortable. Exposure to the millimeter beam triggers a natural response to flee from the site and escape the burning sensation.

ADS’ millimeter waves vs microwaves

Although the working principle of the ADS is similar to a microwave, it’s actually significantly different from it. Microwaves operate at approximately a 2.5 GHz frequency. This translates into a wavelength of 4.7 inches. ADS, on the other hand, operates at 95 GHz, which means that its wavelength is about 0.015 inches. This is tantamount to the thickness of three sheets of paper. As millimeter waves are very short in their wavelength, they only penetrate the top layer of the skin. Microwaves, on the other hand, would be much more dangerous, and even fatal, as they can penetrate 30x deeper into the body, inflicting serious burns.

ADS USES MICROWAVES TO DISPERSE CROWD; THEY ARE MILLIMETER WAVES NOT MICROWAVES

Is ADS dangerous to health?

95 GHz millimeter waves emitted by ADS are non-ionizing, i.e., these energy waves do not possess enough photonic energy to cause disruptions at the cellular level. They can penetrate only up to 0.4 millimeters of skin depth, but the energy is high enough to elevate the skin’s temperature. The heating sensation one gets upon being exposed to millimeter waves is intense, but it ends as soon as the exposure to the beam ends. That’s the whole purpose of ADS. Expose the beam to the insurgents so that they retreat to escape the burning sensation. The heating of the skin by the ADS beam basically produces an intolerable burning sensation and triggers a reflexive response to flee the site.

Health effects upon being exposed to millimeter waves have been studied for decades. One of the first studies to understand the health implications of millimeter exposure was done as early as 1947. This study by researchers Morit and Henriques studied the effect of increasing the skin temperature, including intense heating of the skin by radiation.

These human effect studies are usually conducted in a laboratory wherein subjects (humans) are exposed to a small spot of millimeter waves. They are told to sit on a stool and are then exposed to small millimeter waves from behind. Upon exposure, subjects are unsettled and their natural response is to move or escape the source of discomfort. The reaction time is recorded and the skin irritation is then medically examined.

Research shows that there is some safety margin between the time it takes for the subject to feel the tingling heating pain and move away from the beam, as exposure immediately triggers the natural response to leave. Hundreds of people have been studied so far and thousands of exposures have been tested to understand the potential health effects of millimeter waves exposure. Studies done so far have found that the effect of such exposure is minimal and is limited to skin reddening and irritation. However, 8 people did get a more severe second-degree burn, consisting of a pea-sized blister.

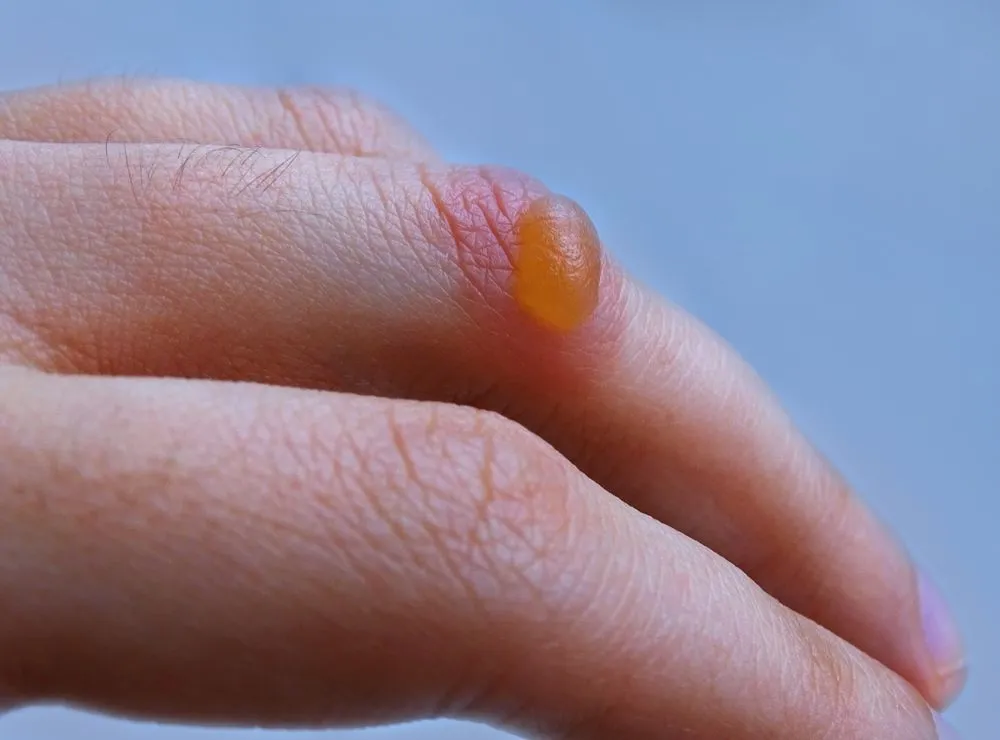

A burn blister on the hand(Monika Zajac)s

Prolonged exposure to millimeter waves could lead to second degree burns and can cause blisters (Photo Credit : Monika Zajac/Shutterstock)

Non-lethal directed-energy technologies like ADS has a profound impact on warfare and crowd control capabilities, but its application is still a contentious issue. Forces can indiscriminately use this technology to curb any revolt or dissent under the pretext of maintaining law and order. Before using it on any broad scale, we need a stringent legal framework to ensure that this technology is never misused by those in power.

References

  1. United States Department of Defense
  2. United States Department of Defense (research findings)
  3. Duke University School of Law
  4. ResearchGate
The short URL of the present article is: http://sciabc.us/Rxj6u
