What Are Shock Waves And How Are They Created?

Shock waves occur when something moves faster than the speed of sound, causing sudden variations in fluid properties.

When you hear the word shockwave, several images come to mind. The effect of a bomb going off is perhaps the most prominent one. We often say that big events, like an election, caused “shock waves” throughout the country, but those are only figurative shock waves. You might even be thinking about the obscure Marvel superhero of the same name, but now we’re getting off topic…

Let’s explore what shock waves mean in physics and how exactly they’re created.


Recommended Video for you:


What is a Shock Wave?

A shock wave, like any wave, is a disturbance moving through a medium. They are thin wavefronts that cause sudden changes in the pressure, temperature, and density of the medium.

Shock waves are caused in supersonic flows. This is when something is traveling at a speed faster than the speed of sound in the medium. When a bullet travels at a speed greater than the speed of sound in air, we get shock waves.

To visualize shock waves, we need special imaging techniques like Schlieren imaging to capture them.

Bow Shock Wave

Shock wave from a bullet captured using Schlieren imaging. (Photo Credit : Nathan Boor /Wikimedia commons)

If the shock wave is produced in a direction perpendicular to the direction of flow, they are called normal shocks. If they occur at an angle, they are called oblique shock waves.

How are shock waves formed?

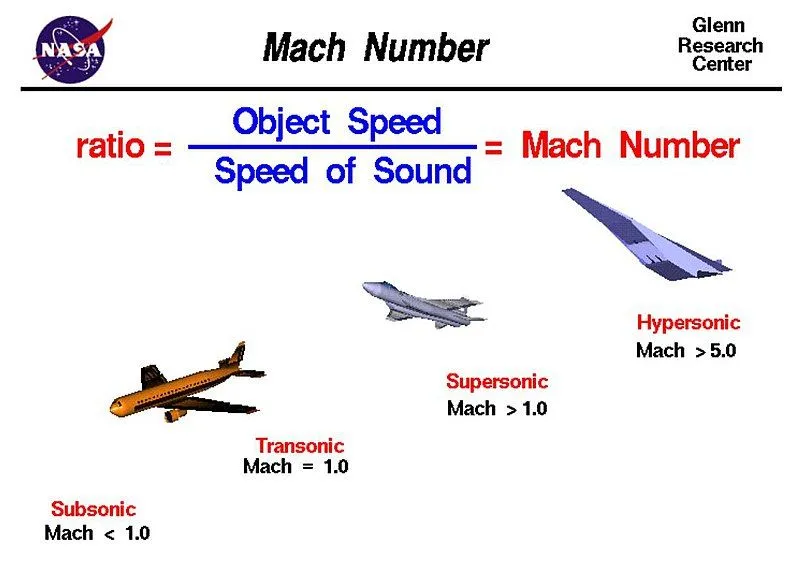

Before we get to the how, let’s look at the Mach number. This is the ratio of the speed of an object moving through a medium to the speed of sound in that medium. As such, Mach 1 speed refers to when an object is moving at the speed of sound, also called transonic speed.

Flow_regimes

The Mach Number.

Consider a boat moving through water. The boat is moving at a speed faster than the speed of waves in the water, so the waves have to move out of the way. This results in the wake that we see.

Luxury,Motor,Boat,,Rio,Yachts,Italian,Shipyard,,Aerial,View

A boat moving at high speed leaves a long wake. (Photo Credit : freevideophotoagency/Shutterstock)

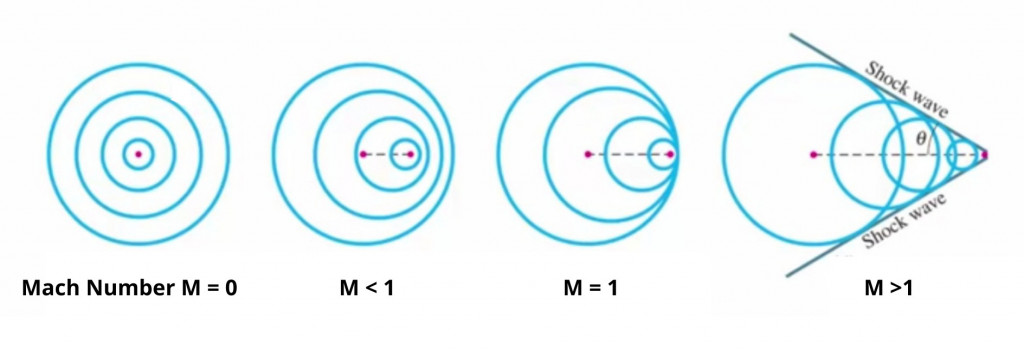

When an object moves through a medium at a low speed, the mach number is less than one. In this case, the waves in the medium moving outward from it will be symmetrical or almost symmetrical in all directions.

When it picks up speed, the waves in front of it will get compressed. They will have more frequency and the waves behind it will have less frequency. The waves in front tighten up the faster the object moves, until we reach the speed of sound.

At the speed of sound, the mach number is equal to one, at which point waves will be tightening and overlapping at the front of the object.

So what happens once the moving object exceeds the speed of sound? The waves are unable to adjust or catch up and are left behind, so to speak. The trailing waves create the shape of an expanding cone.

Mach Number (M) = Velocity of Object Velocity of Sound

Shock waves form at supersonic speeds.

Shock Waves Around Us

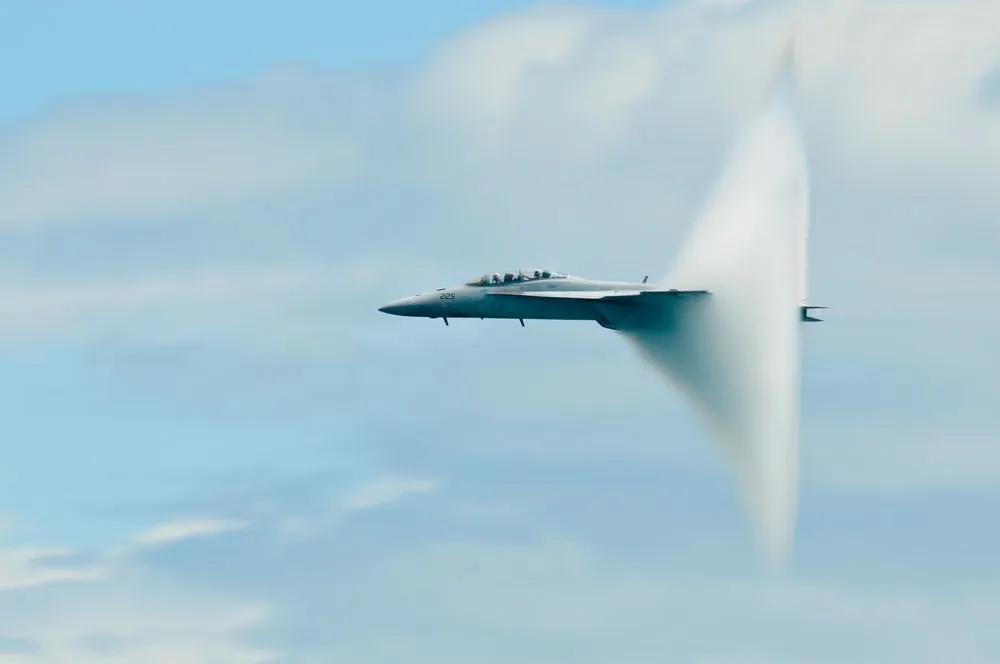

What creates shockwaves? Supersonic aircrafts are an obvious answer, as they often travel at speeds above mach one. In the image below, you can see a supersonic aircraft breaking the sound barrier. The vapor cone is caused by the drop in temperature and pressure caused by the shock waves. When the shock waves get to us, we hear the sonic boom that we associate with jets passing by.

Military,Plane,Sound,Barier.,Military,Plane,On,Blue,,Cloudy,Sky

A supersonic aircraft breaking the sound barrier. (Photo Credit : Katerina_S/Shutterstock)

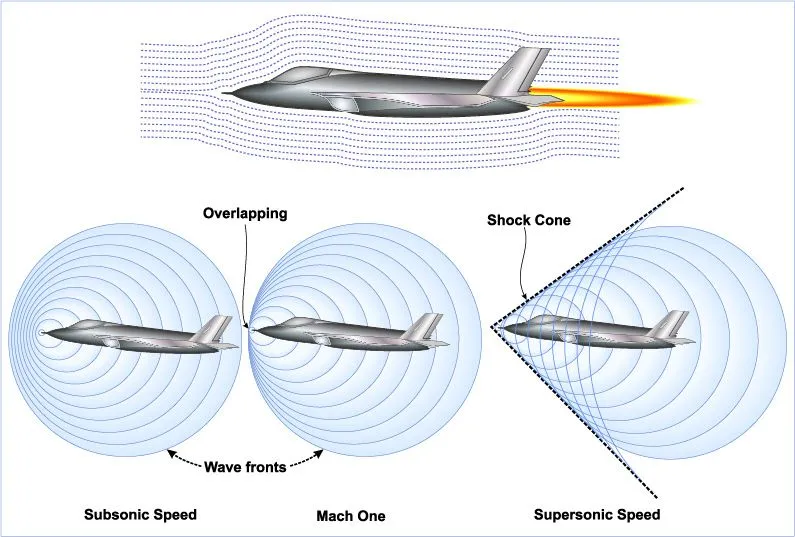

The illustration below shows how the waves behave in subsonic, mach one, and supersonic conditions.

Traffic,Wave,(transonic)

How a supersonic aircraft creates shock waves (Photo Credit : Fouad A. Saad/Shutterstock)

Bullets traveling at supersonic speeds generate shock waves. This is what causes the ‘crack’ of the bullet that can be heard as it passes by someone. In the awesome video below, you can see such waves being captured with schlieren imaging and then analyzed.

The sound heard when cracking a whip is the result of weak shock waves being produced by the fast-moving tip. Yes, that’s right. The tip of a whip travels faster than the speed of sound to create that crack!

Ritten,Mountain,Ridge,,South,Tirol/,Italy,-,August,24,2010:

Cracking a whip. (Photo Credit :Bernd Zillich/Shutterstock)

The sound of thunder is also a shock wave phenomenon. The bursting of firecrackers is the result of shock waves. Bomb explosions create similar, but bigger spherical shock waves, which can knock over buildings if the explosion is strong enough. A meteorite impact would also cause such waves.

Beyond Aircrafts And Bombs

Shock waves are caused in supersonic flows. Talking about shock waves with examples like aircrafts can sometimes limit our visualizations. Here we are thinking of objects moving at supersonic speeds, but we can also be thinking about a fluid flowing at supersonic speeds through a pipe that is faced by a change in something—a variation in the shape or dimensions of the pipe, for instance. In such a case, shock waves would also be created!
