The Cosmology Crisis: Do We Really Know How Fast The Universe Expands?

Table of Contents (click to expand)

Astronomers have been trying to measure the universe’s expansion using different methods, but they have found inconsistent results.

Humans have come a long way in our urge to understand the universe and the various structures it holds, including galaxy clusters, star systems, and so much more. We have created theories to explain various phenomena and devised clever experiments to test them.

Sure, many phenomena have been discovered and understood, but there are plenty of things still left to be found.

In this article, we will investigate one of them: the rate at which the universe expands.

To find out how fast the universe is expanding, we need a combination of both theoretical backgrounds and experimental approaches, mostly involving observations.

On the theoretical side, we need a model of the universe that can describe concrete aspects, like its overall shape and curvature, its composition, etc. Using the data obtained from observations, along with some mathematical calculations, we can determine the expansion rate.

cosmic web
This is a simulation image of how the universe might appear in the largest length scales. It has been aptly termed the Cosmic Web. (Photo Credit : Wikimedia Commons)

Recommended Video for you:

The Lambda-CDM Model Of The Universe

Currently, the most accepted model of the Universe is the Lambda-CDM model, also called the Standard Model of Cosmology. CDM stands for Cold Dark Matter, while ‘Lambda’ is a Greek letter representing dark energy. This is an analytical model that may describe several observable phenomena in the universe.

The model makes use of six parameters, as well as several assumptions, to describe the Universe. Some necessary assumptions are that the Universe is mostly the same everywhere and that general relativity can sufficiently explain gravity. It also assumes that the Universe has the following constituent parts:

  1. Dark energy, responsible for the Universe’s accelerated expansion,
  2. Dark matter, a theoretical form of matter that interacts only gravitationally,
  3. Normal ordinary matter that makes up the stars, planets, galaxies, etc.,
  4. The Cosmic Microwave Background (CMB),
  5. Neutrinos

The Standard Model of Cosmology derives its mathematical framework from Albert Einstein’s General Theory of Relativity. In this framework, a quantity called the Hubble parameter represents how fast the Universe expands.

Vector 3D pie graph or chart with a composition of the universe with percentage on a black backgroun
This pie chart gives an approximate percentage of the composition of the Universe. The CMB and neutrinos take up only an extremely tiny percentage, and are usually not mentioned. (Photo Credit : -petrroudny43/Shutterstock)

The value of the Hubble parameter has been changing throughout the history of the universe and will continue to do so in the future. The present value of the Hubble parameter is called the Hubble constant. Measuring the Hubble constant tells us how fast the universe is expanding in the current age.

In modern astronomy, there are two ways to measure the value of the Hubble constant. One method finds distances to faraway objects and then determines their redshifts. With a redshift versus distance plot, we can obtain the value of the Hubble constant. The second method uses observations and measurements of the Cosmic Microwave Background. Let’s look at both of these techniques.

Also Read: Why Is The Universe Expanding?

The Distance-Redshift Measurement

The main component of the first method is measuring distances, particularly distances to faraway galaxies. As we know, outer space spreads far and wide, so to be able to measure the distance to these remote objects, astronomers employ various techniques, such as parallax methods and Cepheid variables, to accurately measure them.

Usually, the method used largely depends on the distance of the objects. We use techniques like parallax to determine the distance of nearby stars, but to determine the value of the Hubble constant, we need distances to faraway galaxies. To measure such distances, astronomers use Cepheid variables and Type 1A supernovae.

Astronomers regard Cepheid variables and Type 1A Supernova as ‘standard candles’, because we accurately know their absolute magnitude, i.e., the total amount of light these objects emit. Usually, determining the absolute brightness of entities like stars is very difficult, but there are exceptional objects where the absolute magnitude is known. These are known as standard candles.

Hubble image of variable star RS Puppis
This is an image of the Cepheid variable, RS Puppis, taken using the Hubble Space Telescope. It changes its brightness periodically and is used to measure distances to nearby galaxies. (Photo Credit : – Flickr)

We use standard candles to find distances. The further an object is from us, the dimmer it will appear, a principle used in measuring distances. Using a standard candle whose absolute magnitude is known, we can determine how far away the object is by identifying how bright it appears on Earth.

Cepheid variables refer to stars that change in brightness in regular periods. By detecting these objects in nearby galaxies, we can use the above principle to measure the distance to that galaxy. It is important to note that this works only for nearby galaxies, as it is difficult to distinguish individual stars in far-off galaxies. For such cases, astronomers measure distances using Type 1A supernovae.

Now that the distance part is covered, the next part is the redshift. Redshift is caused by the Doppler effect, in which light from distant objects gets shifted to lower wavelengths. It appears this way because these objects are moving away from each other, due to the expansion of the Universe.

Given this expansion, the objects are moving away with a certain velocity. The redshift we observe on Earth is, in essence, a measure of this velocity; the higher the speed, the greater the redshift.

Cosmological redshift vector illustration
An illustration of how redshift works. As the space between objects expands, the waves of radiation are similarly stretched and become a lower wavelength. (Photo Credit : VectorMine/Shutterstock)

By measuring these two quantities (the redshift, z, and the distance, D), one could measure the Hubble constant, H0, by plotting out the equation,

Scientists calculated the latest value of the Hubble constant using this method in 2022. The value obtained was 73.30 km/(s Mpc). Previously obtained values from this method gave values close to this one.

Also Read: How Do You Measure The Distance To A Star?

The Cosmic Microwave Background Measurement

The second method used to measure the Hubble constant is derived from the Cosmic Microwave background. The Cosmic Microwave Background (or CMB) is the remnant of the first ‘free’ radiation produced in the universe. It is known as ‘free’ because, before the creation of the CMB, the universe had very high temperatures. These high temperatures caused light (or photons) to be repeatedly scattered by highly energetic electrons, protons, and other particles. As a result, the photons would bounce around wildly, making the whole universe appear opaque.

However, with time, the expansion of the Universe also caused it to cool down, allowing the electrons and protons to combine and form atoms. With atoms forming, the photons were no longer scattered and could travel without hindrance. The first set of photons that could do this became the CMB that we see.

Model of the Planck Satellite
A model of the Planck satellite that was used to observe the Cosmic Microwave Background. (Photo Credit : Mike Peel/Wikimedia Commons)

The Planck satellite is the spacecraft that recorded the latest observation of the CMB. One of its primary missions was to detect the temperature differences present in the CMB. That would give us some idea of how the Universe appeared around 300,000 years after its formation, when light was first traveling freely.

Astrophysicists used these variations (scientifically referred to as anisotropies) to study the subsequent evolution of the universe. By comparing it to how the Universe and its large-scale structures currently looks, we can find properties like the expansion rate and temperature. While this is a rather indirect method, it does provide another way of measuring the Hubble constant.

In 2018, scientists published the last set of results using Planck data. In that, astronomers obtained a value of  67.27 km/(s Mpc). Previous measurements from the Planck satellite yielded similar values. This value is dissimilar to the one obtained using Type 1A supernovae and Cepheid variables (73.30 km/(s Mpc)), even after accounting for instrumental and other random errors.

Cosmic Background Radiation Left After the Big Bang
This is a measurement of the Cosmic Microwave Background obtained using the Planck satellite. The blue areas represent regions of lower temperature, while red represents regions with higher temperature. (Photo Credit : – Flickr)

Also Read: What Is The Cosmic Microwave Background?

The Cosmology Crisis

This mismatch in the value of the Hubble constant has been termed the ‘Cosmology Crisis’ or the ‘Hubble Tension’. This disparity in the value of the Hubble constant is wide enough that we know something is either missing or seriously wrong.

The missing aspect could be an undiscovered element of physics relating to how the structure of the Universe evolved. This may seem like an exciting prospect, but sadly, there is no data to analyze that would help us uncover “new” physics. With newer technologies and instruments like the James Webb Space Telescope, and when LIGO turns back on in late 2023, we might be able to obtain the necessary data.

The other possibility is that something might be wrong in our calculations or conceptions of this question. Regardless, it is essential to find where the mistake is. One way to tackle this is to devise newer methods to find the Hubble constant. Another distance measurement used a technique called Tip of the Red Giant Branch (or TRGB) and gave a Hubble constant value between 69-71 km/(s Mpc). Amusingly, this value comes in between those found using Cepheid/Type 1A supernova and the CMB.

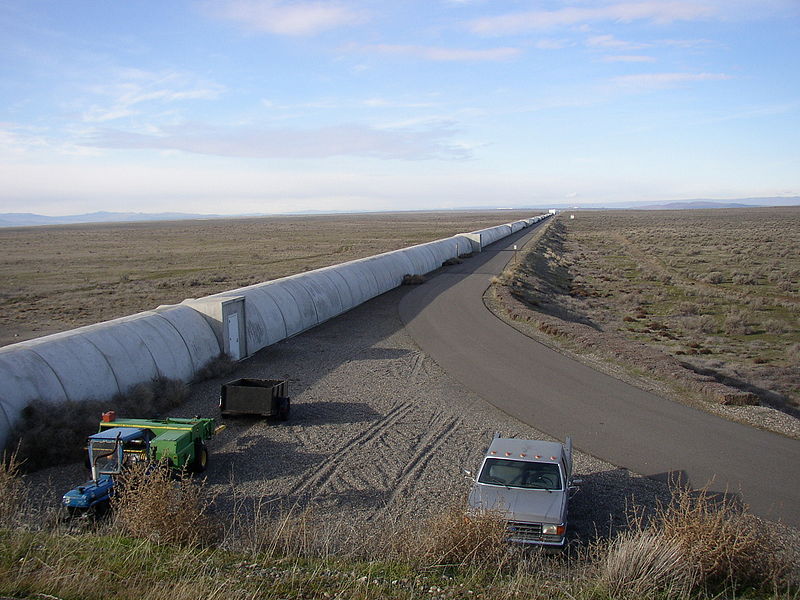

Northern leg of LIGO interferometer on Hanford Reservation
This is an image of one of the arms that form a part of the LIGO. The LIGO will be important in helping us understand more about the Universe, and find out more about any undiscovered Physics. (Photo Credit : Umptanum/Wikimedia Commons)

A Final Word

The Hubble constant is probably one of the most fundamental parameters of the Universe. Apart from just quantifying the expansion rate, it also tells us the age of the Universe and appears in the Friedmann equations. In a way, the Hubble constant is one of the keys to understanding how the Universe changes over time.

In a way, having problems like the Cosmology Crisis is what pushes scientific research forward. After all, people make groundbreaking discoveries when there is a problem or situation to address. The Cosmology Crisis is the latest in a long line of questions and obstacles that scientists inevitably face. As mentioned before, there are either new, undiscovered physics to study or a mistake made somewhere tat needs to be identified and remedied. Determining the truth in such hotly debated academic “crises” polishes our knowledge of science and drives our scientific achievement forward!

Also Read: What Existed Before The Big Bang?

References (click to expand)
  1. Freedman, W. L., Madore, B. F., Hatt, D., Hoyt, T. J., Jang, I. S., Beaton, R. L., … Seibert, M. (2019, August 29). The Carnegie-Chicago Hubble Program. VIII. An Independent Determination of the Hubble Constant Based on the Tip of the Red Giant Branch*. The Astrophysical Journal. American Astronomical Society.
  2. GS Anand. (2022) Comparing Tip of the Red Giant Branch Distance Scales. Hing
  3. N Aghanim. (2020) Planck 2018 results - I. Overview and the cosmological .... Astronomy & Astrophysics
  4. Astronomical Redshift | Imaging the Universe. University of Iowa
  5. W Freedman. (2002) The expansion rate of the universe - Oxford Academic. Oxford University Press
  6. Hubble law and the expanding universe. Georgia State University
  7. Cosmic Microwave Background (CMB) radiation. European Space Agency
  8. ESA - Planck. European Space Agency
  9. Explanation of the cosmic distance ladder. University of Western Australia
