How Do Train Wheels Turn?

Train wheels are not entirely conical, but they are not perfectly cylindrical either. The slight conical taper—typically about 1 in 20—lets the outer wheel of a wheelset roll on a larger effective radius than the inner wheel on a curve, so each wheel covers a different distance per revolution even though they spin together on a common rigid axle. This passive “differential” keeps the train tracking smoothly without any mechanical differential at all.

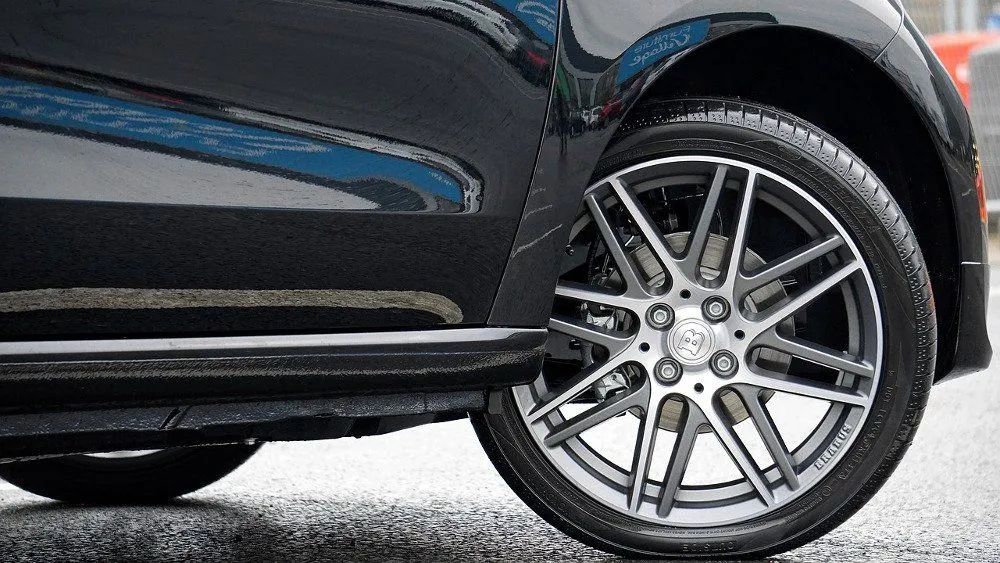

When an automobile (that runs on four or more wheels) takes a turn, the wheels on the outside (during the turn) must travel a slightly greater distance than the wheels on the inside.

This is important, because if this were not the case, we could never have ‘stable’ cars that could reliably maneuver a turn while staying on the road. However, how do you make two wheels, which are of the same diameter and attached to the same axle, cover different distances?

This is where automobiles’ axles enter the scene.

Recommended Video for you:

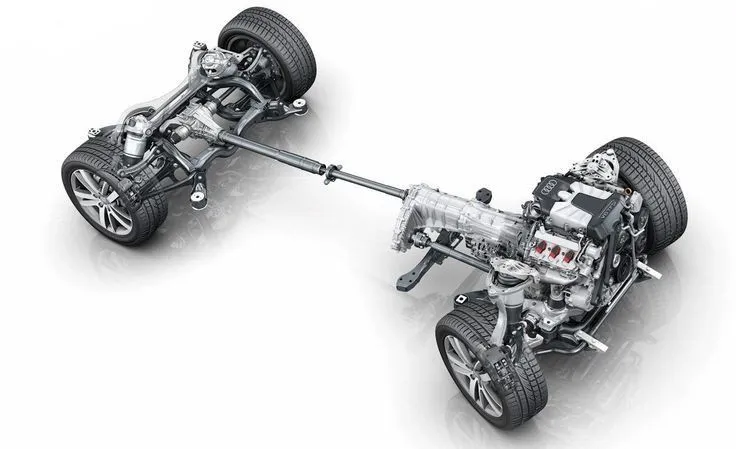

Axle

An axle is a central shaft for a rotating wheel or gear. In simple words, the axle is a rod that goes through the vehicle’s wheels, thus letting the latter turn. Axles, needless to say, are a critical component of most wheeled vehicles. They not only transmit driving torque to wheels and maintain the wheels’ position with respect to each other and the vehicle body, but also bear the weight of the vehicle and any cargo.

Axles come in different systems; in some wheeled vehicles, they may rotate with the wheels fixed to them (or the vehicle). These axles have a part – a differential – which enables the outer wheel to go a little more than the inner wheel, which facilitates a stable, ‘grounded’ drive.

Trains, just like cars, also have wheels that are of the same diameter, which means that they also have to deal with the same situation when they maneuver a turn, i.e., their outer wheels need to travel a bit further than the inner ones, lest the train get derailed.

In the case of cars, this situation is handled with the help of a differential, but how is it tackled when long, heavy and large trains (with hundreds of wheels) are in question?

Train Wheels

A train wheel is a type of wheel that’s especially designed to run on metallic railway tracks. Also referred to as a rail wheel, it’s either cast or forged and is treated with heat to acquire a specific, desired toughness.

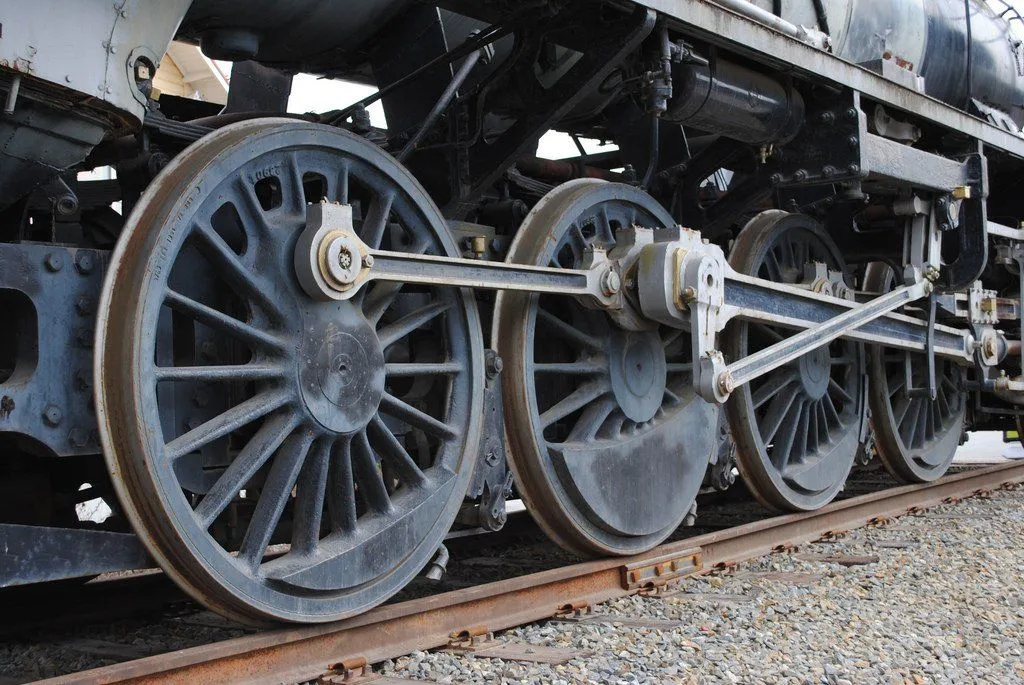

Now, you may have seen trains countless times in your life, but have you ever really paid attention to their wheels? A casual glance at the wheels of a train will tell you that they are circular, just like other standard wheels. I used to think that train wheels were perfect circles too… but they’re not!

Train Wheels’ Conical Shape

If you don’t know already, you might be a little surprised to learn that many (not all) trains’ wheels are not perfectly cylindrical; they are, in fact, conical!

Train wheels are not entirely conical, of course, otherwise they would be unable to run (duh!), but they are actually not perfectly cylindrical either.

The most critical advantage that slightly conical wheels (in trains) have is that the two wheels of a rigid wheelset can roll at slightly different linear speeds (because their effective rolling radii differ), even while they share the same rotational speed on a common axle. Perfectly cylindrical wheels can’t pull this off as smoothly, since both sides have an identical radius no matter where on the rail the wheel sits.

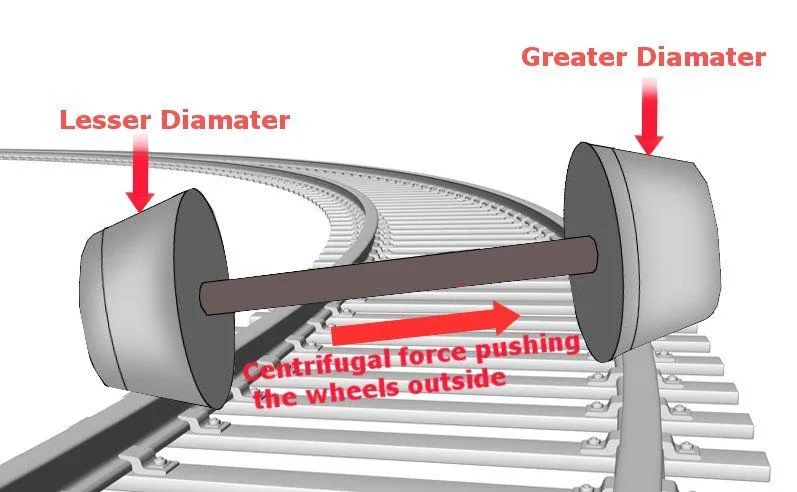

You see, when a conical wheel turns, it slides to the larger part of the cone on the outside wheel and the smaller part on the inside wheel. The inward-facing flange on each wheel acts as a last-resort guard rail to prevent derailment, but in normal running the conical taper does almost all of the steering on its own—a self-centering effect first explained mathematically by the German engineer Johannes Klingel in 1883.

The upshot is that the two wheels still turn at the same rate, but their effective rolling radii are different—so each wheel covers a different distance with every revolution. Here’s an animation that will help you visualize this better:

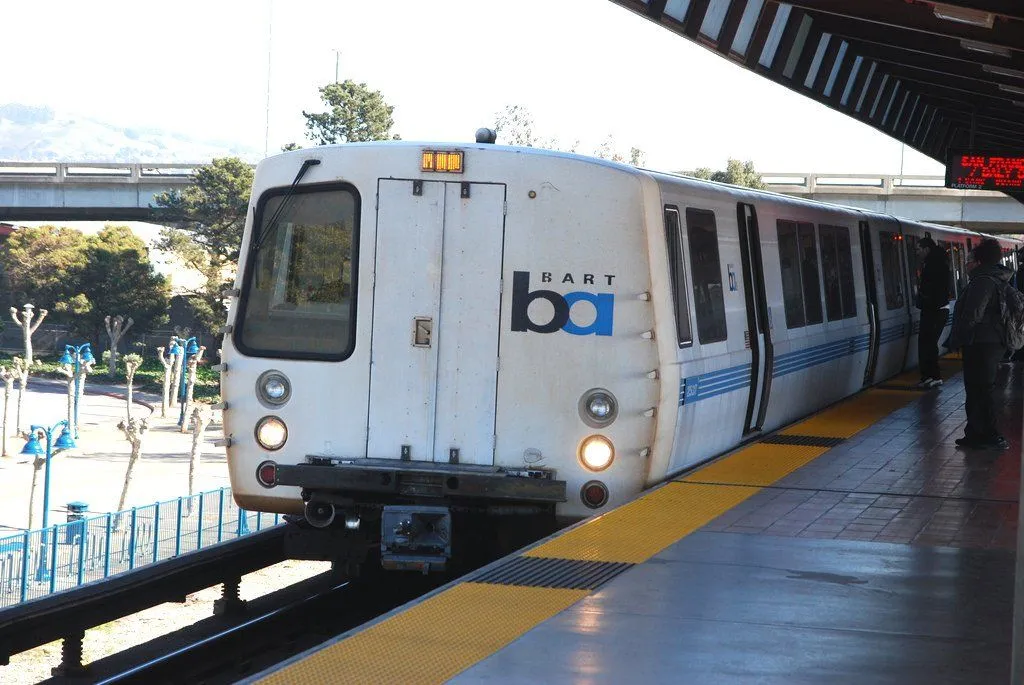

On the other hand, when wheels with a near-cylindrical (flat) tread maneuver a turn, the wheelset can’t self-steer through the geometry alone—the flange ends up rubbing the rail to force the wheelset around the curve. That sliding friction is what produces the deafening screeching “curve squeal” you hear in some metro systems. The Bay Area’s BART famously shipped its original 1970s fleet with a cylindrical wheel profile, which is a big reason early BART trains were notorious for shrieking around curves. BART has since reprofiled its wheels to a tapered, more conical shape, and the entire legacy fleet was retired in March 2024 in favor of new “Fleet of the Future” cars built with the quieter conical profile from the start—cutting interior noise by up to roughly 15 dB on reprofiled wheels.

Here’s an interesting video that explains the mechanism behind the turning of train wheels in detail:
